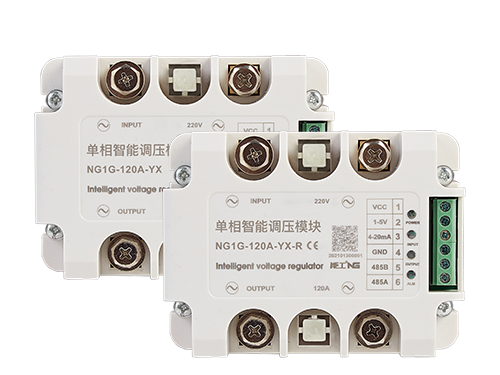

The G series single-phase intelligent voltage regulation module integrates the precise control of power regulators and the economic applicability of phase shift voltage regulation modules. It is manufactured using digital design, high-quality components, and the latest microcomputer control technology, with outstanding functions. It can be adjusted automatically or manually to change the voltage on the load, thereby adjusting the output power. Realize stepless adjustment of load voltage from 0 to full grid voltage. Internal integration of powerful software modules

Widely used in electric heating power control, melt blown cloth equipment heating constant temperature control, transformer primary voltage regulation, variable resistance load, lighting regulation, and other occasions.

Product features:

Fully digital circuit control, 32-bit ARM chip, high stability

● 485 communication control function; PWM5/12/24V control function (option)

● Single phase 220/380V; No need for external auxiliary power supply and synchronous transformer

● Economic and beautiful, small size

● Fast processing and response speed, control accuracy better than 1%, resolution up to 2000:1

Low failure rate and long service life due to fewer parts on PCB board

● Multiple input methods do not need to be set

● Adopt transformer multi-pulse trigger technology, with low harmonics and high power factor

● Built-in 120 ℃ overtemperature protection, forced shutdown due to overtemperature

● External 220VAC fan
