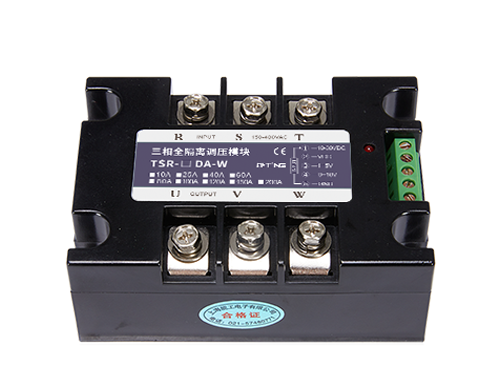

The three-phase AC phase shift voltage regulator is designed with an imported large-scale integrated circuit, which integrates a three-phase phase shift trigger circuit, one-way thyristor, RC resistance capacitance absorption circuit, and power supply circuit. It can be adjusted automatically or manually to change the voltage on the load, thereby adjusting the three-phase output power. That is, under the input control, a strong trigger pulse signal is generated that can change the conduction angle of three phases, and then the internal thyristor is controlled separately to achieve stepless adjustment of the three-phase load voltage from 0V to the full voltage of the power grid.

It can be widely used in small current heating control situations such as electric heating power control, dimming, transformer primary voltage regulation, and so on.

Product features:

● Fully digital circuit control, 32-bit ARM chip, high stability

● DC12/24V 0.5A main board power supply

● Wide input regulation range, high output regulation accuracy, good three-phase symmetry, and strong anti-interference ability

● Fast processing and response speed, control accuracy better than 1%, resolution up to 2000:1

Low failure rate and long service life due to fewer parts on PCB board

● Multiple input methods do not need to be set

Adopt transformer multi-pulse trigger technology, with good stability

● Each input control terminal and the strong current main circuit are designed with full isolation, and the insulation medium withstand voltage is greater than 2000VAC

● External 220VAC fan
